Weights and moduli of section of combined PEINER sheet pile walls
Weights

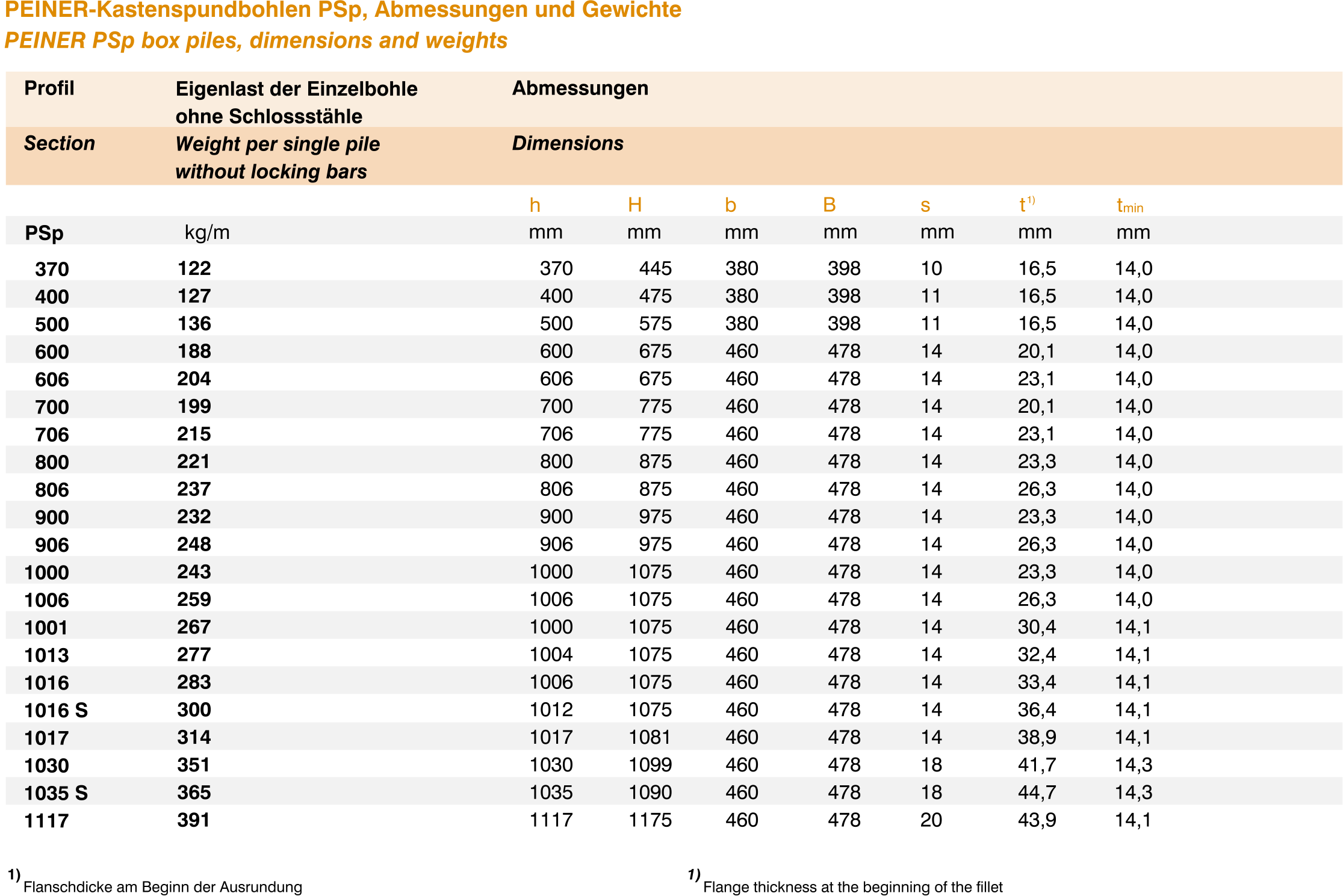

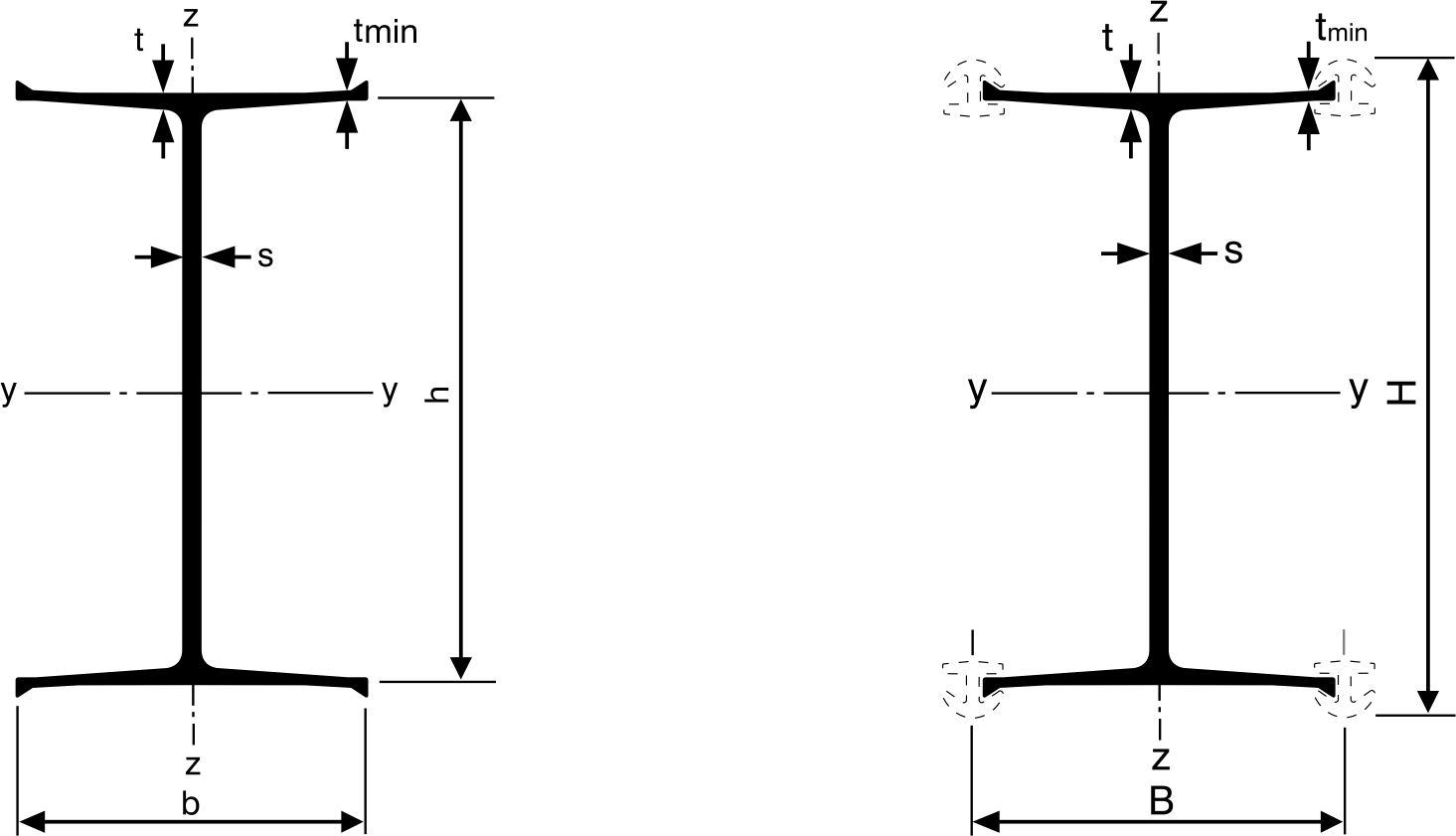

The intermediate sections PZ of combined PEINER sheet pile walls are usually shorter than the PSp bearing piles. In the following tables the weight of the combined sheet pile wall is applied to the length of the bearing piles.
Applied weights of the wall for lengths of intermediate piles at a ratio of 60%, 80% and 100% of the bearing piles are given in the following tables. Intermediate values can be interpolated.
Moduli of section
When calculating the static values for combined sheet pile walls, the load-bearing capacity of the individual piling elements is based on their moment of inertia.

I_y=( I_p+I_Zw)/a                          W_Y= ( I_p+I_Zw)/a* e_p                              W_{Y<sup>`</sup></sub>= ( I<sub>p</sub>+I<sub>Zw</sub>)/a* e<sub>p`}

I_p- Moment of inertia of PSp piles in cm⁴
I_Zw- Moment of inertia of PZ piles in cm⁴
a - Spacing of PSp piles in m
e_p/e_{p`</sub>- edge spacing from the neutral axis in cm (in relation to pile/locking bar outer edge)
The moduli of sections W<sub>Y</sub> and W<sub>Y<sup>`</sup>} and the moment of inertia I_y are given in the following tables.

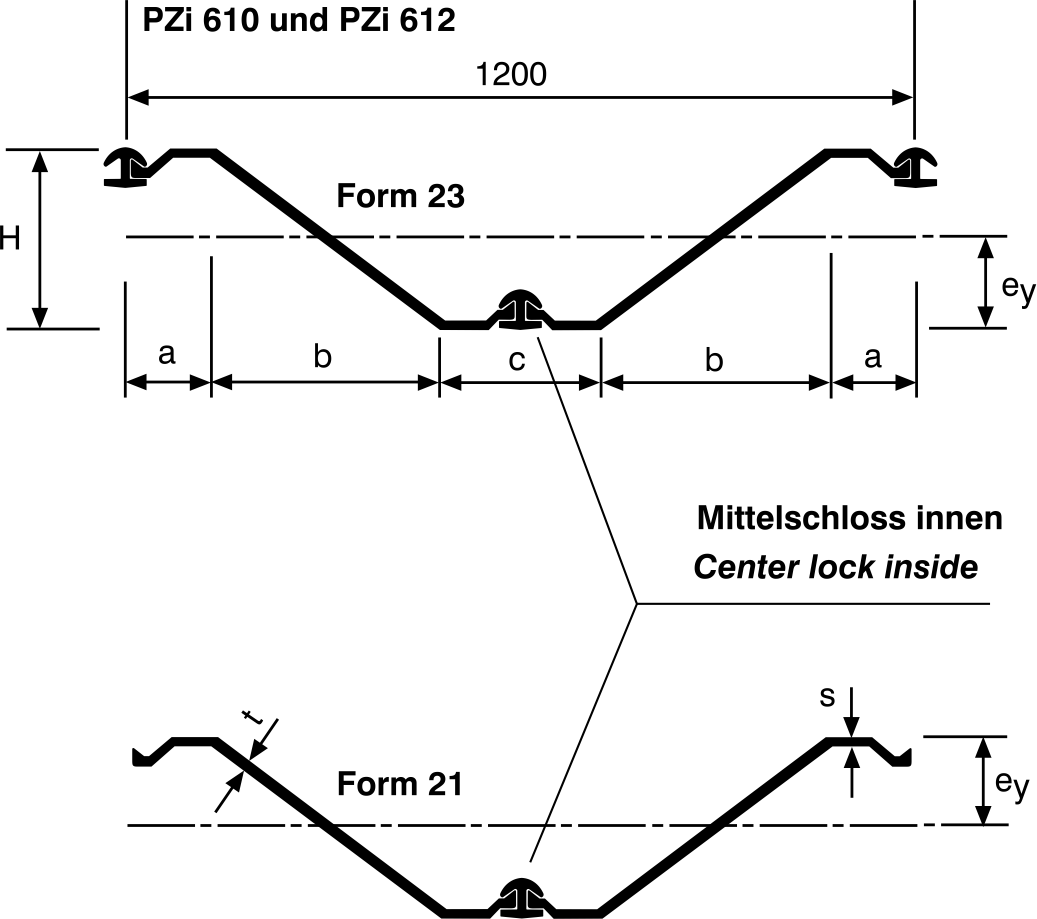

Designations of the wall combinations
Example: PSp 1035 S with PZi 612
Combination 24/21
where 24 is:

• 2 - Number of PSp sections
• 4 - Number of locking bars on PSp sections

and 21 is:

• 2 - Number of intermediate sections
• 1 - Number of locking bars on intermediate section PZi

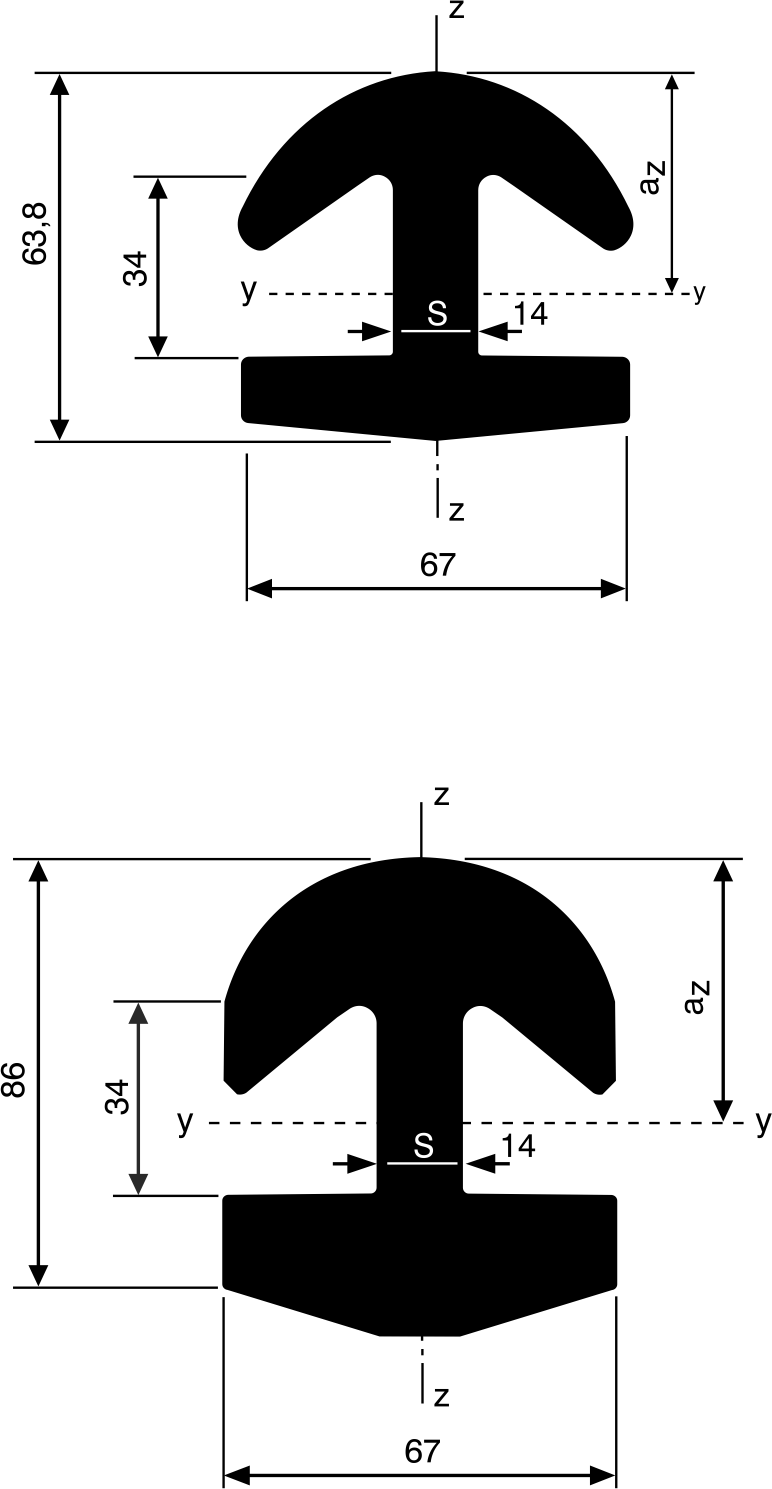

PEINER P locking bar


DWG file :

Special interlock
For driving in heavy soils, a special foot-shaped interlock can be used. This is attached to the foot of the PZ intermediate sections over a length of 300 to 500mm.
Weight: 30.5 kg/m
Cross sectional area : 38.9 cm²
