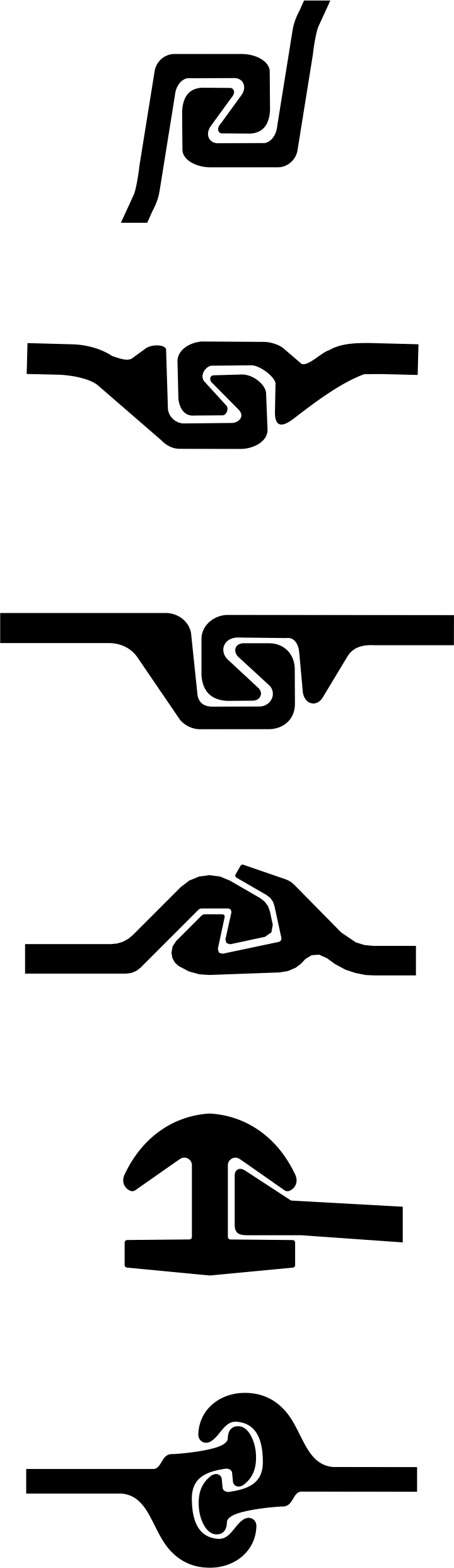

Interlock forms

LARSSEN section
Interlock design conforming
to DIN EN 10248-2 and
E 67 of EAU 2012


LARSSEN 43, 430
Interlock design conforming
to DIN EN 10248-2 and
E 67 of EAU 2012


HOESCH section (LARSSEN interlock)
Interlock design conforming
to DIN EN 10248-2 and
E 67 of EAU 2012


HOESCH section (finger-and-socket interlock)
Interlock design conforming
to DIN EN 10248-2 and
E 67 of EAU 2012



PEINE interlock steel/ PEINE sheet piling

Interlock design conforming
to DIN EN 10248-2 and
E 67 of EAU 2012



UNION straight web section

Interlock design conforming
to DIN EN 10248-2 and
E 67 of EAU 2012

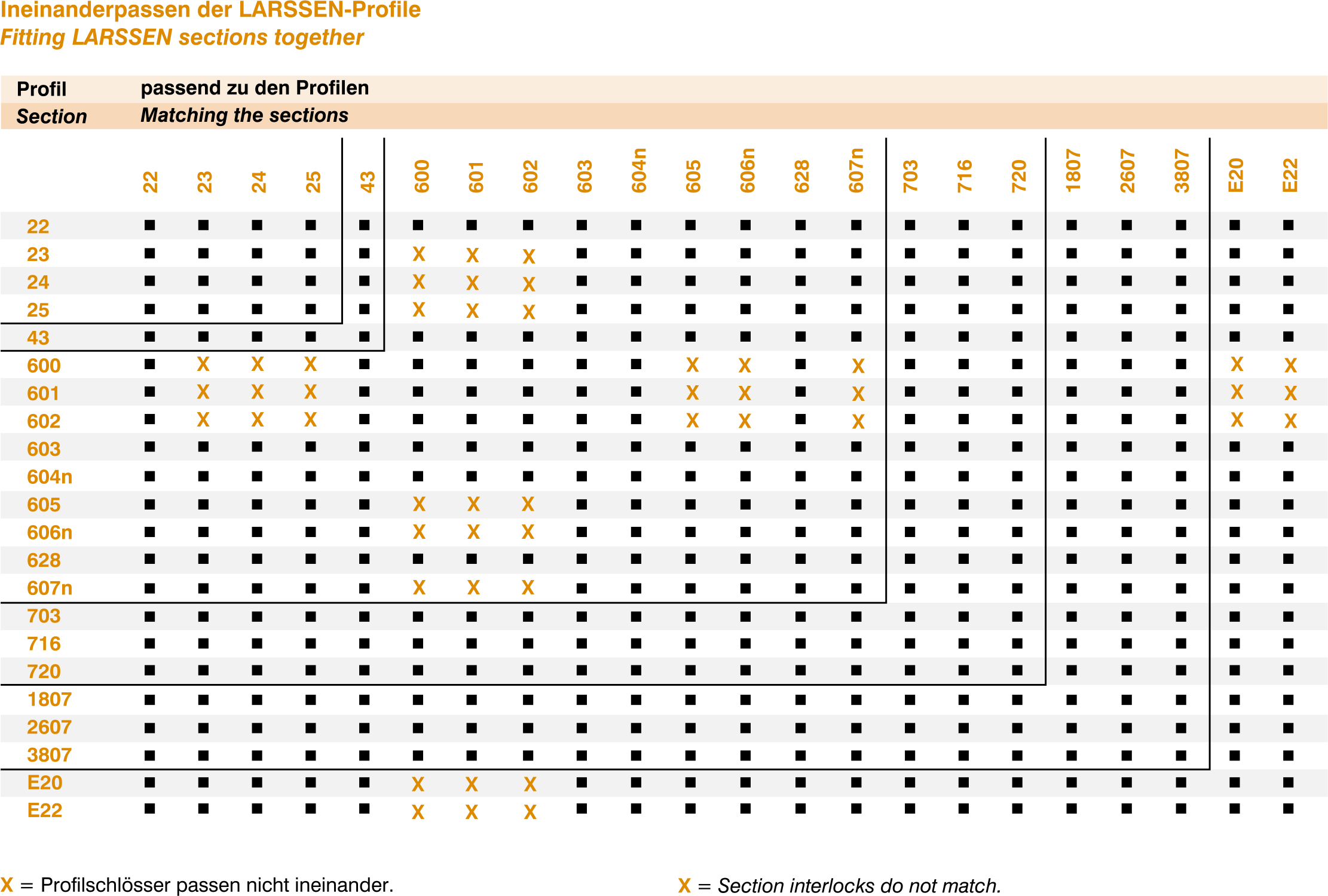

These details only apply to once-only section replacement.
Always consult us if sections in continuous walls are to be regularly replaced.
