Micro piles

Anchoring products » ISCHEBECK TITAN » Products » Micro piles

Ischebeck TITAN injection piles are ideal for use as tension piles, mini piles and root piles (pali radice) in micropiling situations. Ischebeck TITAN micropiles consist of a continuously threaded, hollow stem steel reinforcement tendon combined with an OPC grout body of a minimum 25 N/mm2 strength. They comply with DIN EN 14199 micropiles. The profiled surface of the grout body transfers tension and/or compression forces into the ground.

Mikcropiles used for transferring tension and compression loads to loadbearing soil strata deeper in the ground for:

  • New structures
  • Change of use in older buildings
  • Following damage ( e.g. undermining etc.)

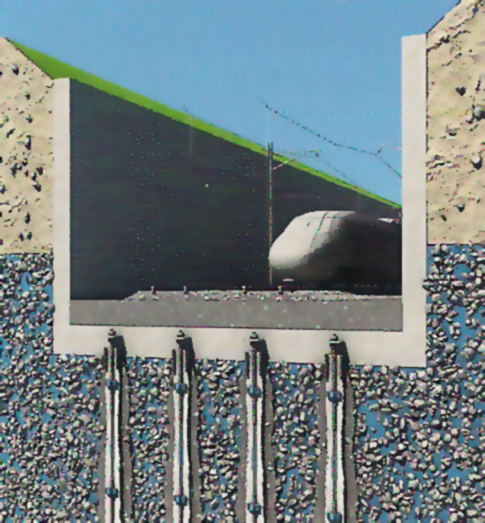

  • Securing against uplift


Titan injection pile for tunnels:
  • Portal stabilisation
  • Pipe umbrellas
  • Driving with spiles
  • IQ Quickset Roofbolts, secured with special resin




Special applications:
  • Drill drain. TITAN injection pile as horizontal drain with a special, permeable grout body for reliable, specific drainage of slope seepage water
  • Monojet. TITAN injection pile used according to the jet-grouting principle with up to 200 bar
  • Geothermal projects. TITAN Geothermal Energy Pile as a combined loadbearing and geothermal element


Advantages over conventional piles

  • Works in compression and tension
  • Does not require temporary casing
  • Improved mechanical ground/grout interaction reduces overall depth
  • Dramatically increased production rates
  • Lightweight rotary percussive drilling equipment
  • Installed in confined spaces
  • Permits top down jet grouting in saturated clays and silts complete with re-bar
  • Perfect as pali radice for invisible structural repairs
  • Remote de-coupling unit facilitates underwater near shore piling from barges or jack leg platforms
  • Self drilling micropiles provide a range of working loads from 110kN to 3,000 kN
  • Minimal noise
  • Low vibration
  • Minimal spoil

The TITAN injection pile in detail:

  1. Loadbearing element with three functions :
  • Hollow steel tendon made from fine-grained structural steel
  • Hollow instead of solid steel tendon
  • Hollow steel tendon with TITAN thread (the form and structure complies with Eurocode 2, DIN 488, DIN EN 10080 and ASTM-A 615.
